Tilia Seismic Control Box
Network relays, Switch, UPS and PoE in one box

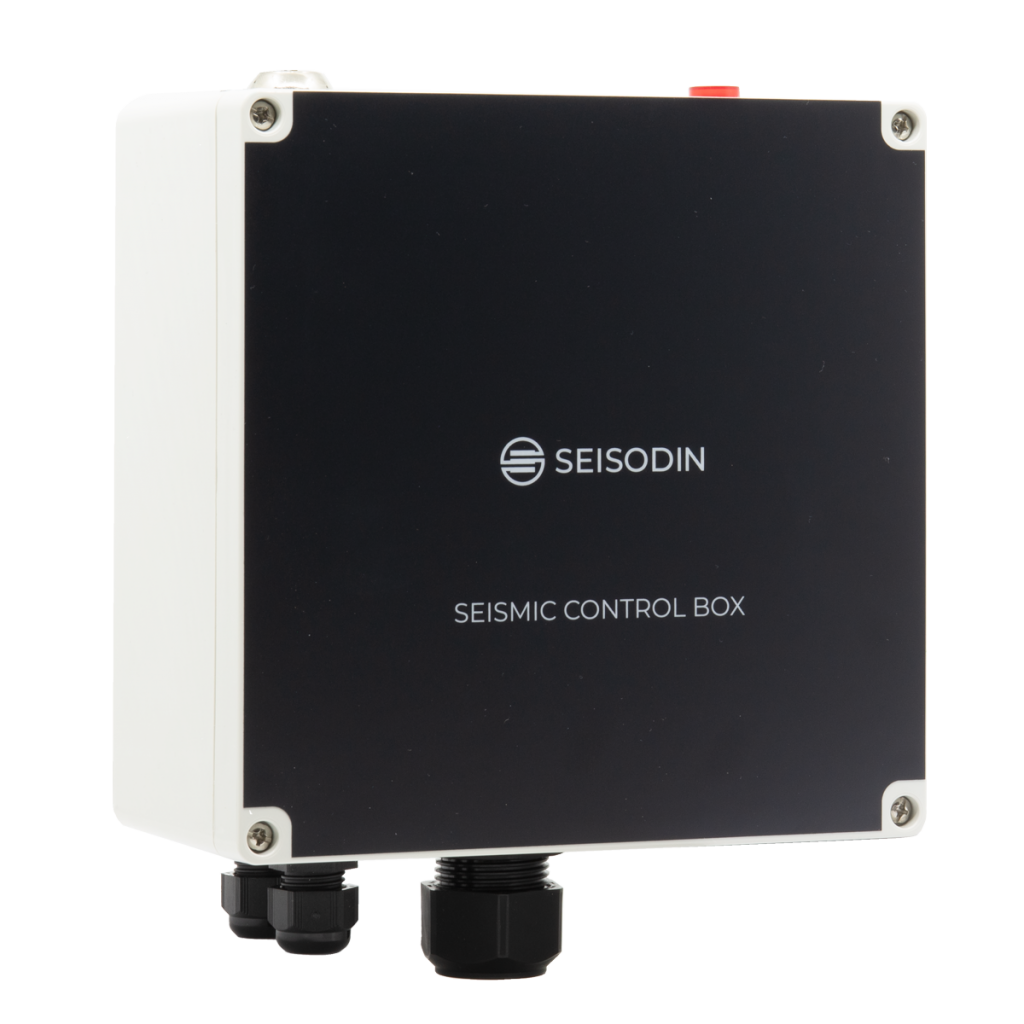

Tilia SCB Seismic Control Box
The Tilia SCB Seismic Control Box is a powerful add-on product for onsite integration of Tilia seismic accelerographs.
The control box combines multiple important functions in one device, acting both as a network relay for Tilia instruments, as a network switch with PoE ports, as an uninterruptible power supply (UPS) and as an alarm interface.
Tilia SCB is capable of powering 2 daisy chains of Tilia instruments with PoE, thereby highly simplifying cabling. The systems integrated UPS functionality provides continues operations during power outages (battery installed externally) and with the integrated relays, Tilia seismic instruments can activate alarms or shut down machinery. A 4G modem can optionally be attached to the SCB, allowing remote access to instruments, or file upload to servers, or it can be connected directly to an internet router.
Request a Quotation Today!
Key Specifications
- Easy integration with Tilia Accelerographs!
- 4 port network switch 10/100
- PoE for 2 Tilia daisy chains
- Integrated UPS functionality
- Integrated charger for UPS battery
- 5 Relays
- Dedicated Siren output (siren optional)
- Integrated button to cancel alarms
- PLC input to cancel alarms
- Connect up to 2 Tilia Daisy Chains
- Connect up to 10 Tilia sensors
- Power sensors directly through PoE
- Power switch with removable key
Applications
- Seismic Alarm
- Seismic Shutdown System
- Activation of fire alarm in event of earthquake
- Power supply and UPS for multiple Tilia sensors
