Peru E.030 Seismic Building Instrumentation

Approved seismic instrumentation for buildings according to E.030 in Peru

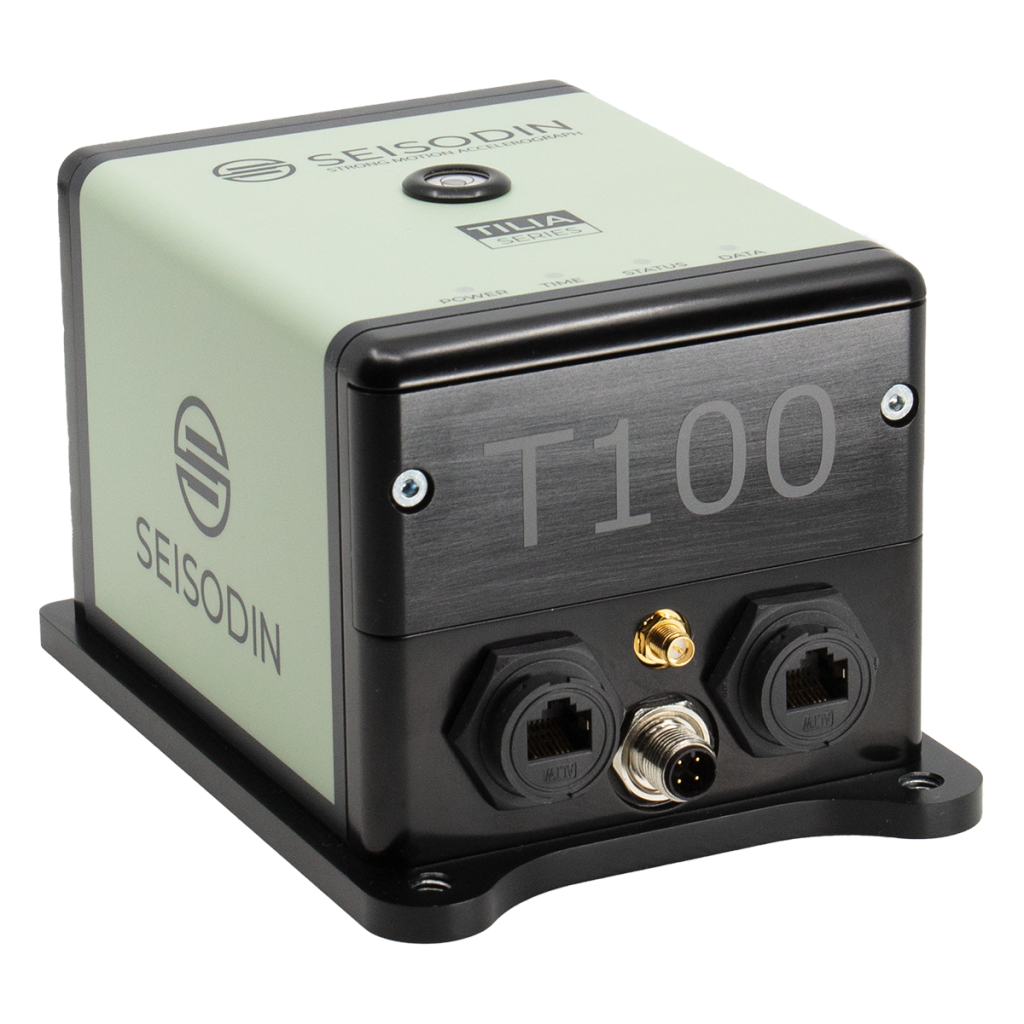

Seisodin Tilia T100 Seismic MEMS Accelerograph


The Seisodin Tilia T100 and T130 are highly integrated seismic monitoring instruments tailored for precision seismic monitoring of buildings. Both the Tilia T100 with MEMS sensor and the T130 with FBA sensors have been fully tested and approved by the Geophysical Institute of Peru (IGP – Instituto Geofísico del Perú) to be compliant with the E.030 requirements for seismic monitoring of buildings according to the seismic building code.

The Tilia T100 offers the simplest and most cost effective installation on the market, and with it’s daisy chain feature two, three or more sensors can easily be distributed on different floor levels of a high-rise building without the need to attach separate power to each device – Tilia daisy chained instruments handle power, network and time synchronization directly in the ethernet cable. The instruments feature an optional integrated battery which provides up to 12 hours of battery life, or alternatively an external battery can be added for several days of autonomy. If required, the system can be provided with relay options, alarm options and display options.

Seisodin has an authorized distributor and partner in Peru who will be able to assist with sales, recommendations, system design and installation!


Tilia Accelerograph Key Specifications

  • Approved by IGP – permitted for use in Peru
  • Seismically Qualified for Seismic Zone 4 (accredited test report available)
  • Daisy Chainable Instruments
  • 3 x MEMS Accelerometers (T100) or 3 x FBA (T130)
  • ±4g or ±2g full scales
  • <40uG noise (0-30Hz)
  • 250Hz bandwidth
  • 3 x 20-bit ADC’s
  • 40ns timing precision using GPS and PTP
  • Simultaneous Sampling
  • Hardware backed PTP (IEEE 1588)
  • Power over Ethernet (IEEE 802.3at)
  • Integrated UPS w. removable battery
  • micro-SD + USB
  • Seedlink streaming
  • Optional: relays for alarm and shutdown functionality
  • Optional: Display box for live data view and alarming.
Seisodin Tilia Seismic Accelerograph for Structural Health Monitoring
